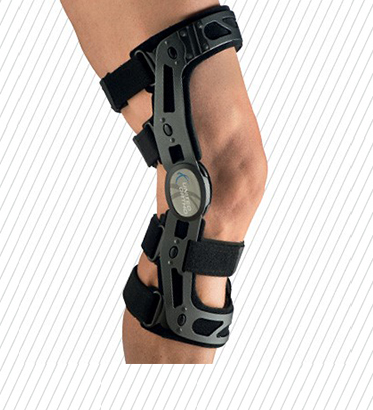

FKB - ANTERIOR, PCL AND STEP-THRU

Available in Sizes:

XS  |  SM |  MD  |  LG  |  XL  |  2XL

The FKB is a feature-rich functional knee brace that creates superior fit and comfort, resulting in increased patient compliance. Ideal for all activity levels.

PRODUCT OVERVIEW

PART NUMBERS / SIZING

Examples of Use

• Moderate to severe ACL/PCL instabilities

• Prophylactic/bilateral use

• MCL/LCL instabilities

• ACL reconstructions



Product Features:

• Opti-Fit technology (1), located on the medial thigh cuff, creates an intimate fit and reduces migration by allowing the natural motion of the knee during flexion and extension.

• Quick-release buckles (2) are internally mounted for easy on and off.

• Straps pivot to create a contoured fit and have gecko tabs (3) with large embossed numbers, making the brace easy to apply.

• Aircraft grade aluminum provides superior strength, yet is extremely lightweight (weighs an average of 18.5 oz.).

• ROM hinge with flexion and extension control.

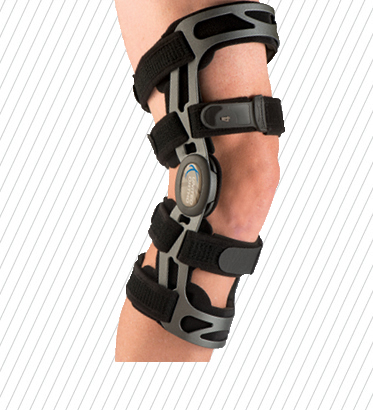

• Anterior frame available in ACL and PCL versions.

• EXT and FLEX stops are included:

  - EXT: 0 (Pre-installed), 10, 20, 30

  - FLEX: 0, 10, 30, 45, 60, 75, 90

• One year warranty on frames and hinges.













Part #

Description

300070-XX

FKB, Undersleeve, Neo

300080-XX

FKB, Undersleeve, Cotton

300090-XX

FKB, Cover

300541-XX

FKB, Anterior Frame, Std, OTS, Right

300542-XX

FKB, Anterior Frame, Std, OTS, Left

300741-XX

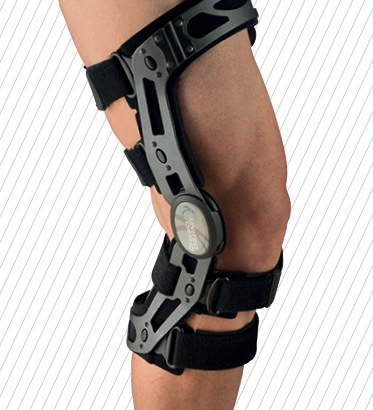

FKB, Step-Thru, Std, OTS, Right

300742-XX

FKB, Step-Thru, Std, OTS, Left

300941-XX

FKB PCL, Anterior Frame, Std, OTS, Right

300942-XX

FKB PCL, Anterior Frame, Std, OTS, Left

400041-XX

Refurbish Kit - FKB, Ant Frame, Std, OTS, Right

400042-XX

Refurbish Kit - FKB, Ant Frame, Std, OTS, Left

400241-XX

Refurbish Kit - FKB, PCL, Ant Frame, Std, OTS, Right

400242-XX

Refurbish Kit - FKB, PCL, Ant Frame, Std, OTS, Left

400040-XX

Strap Set - FKB, Ant Frame, Std, OTS

400140-XX

Strap Set - FKB, Step-Thru, Std, OTS

400240-XX

Strap Set - FKB, PCL, Ant Frame, Std, OTS

400341-XX

Pad Set - FKB, Ant Frame, Std, OTS, Right

400342-XX

Pad Set - FKB, Ant Frame, Std, OTS, Left

400441-XX

Pad Set - FKB, Step-Thru, Std, OTS, Right

400442-XX

Pad Set - FKB, Step-Thru, Std, OTS, Left

400541-XX

Pad Set - FKB, PCL, Ant Frame, Std, OTS, Right

400542-XX

Pad Set - FKB, PCL, Ant Frame, Std, OTS, Left

Product Sizing Information

XX=

Size

Circ. Below**

Circ. Above*

-01

XS

13.00" - 15.50"

10.00" - 11.75"

-03

SM

15.50" - 18.00"

11.75" - 13.50"

-05

MD

18.00" - 20.50"

13.50" - 15.50"

-07

LG

20.50" - 23.00"

15.50" - 17.50"

-08

XL

23.00" - 26.00"

17.50" - 19.25"

-09

2XL

26.00" - 29.00"

19.25" - 21.50"

*Circumference measurement taken 6" above mid-patella.

**Circumference measurement taken 6" below
mid-patella.
